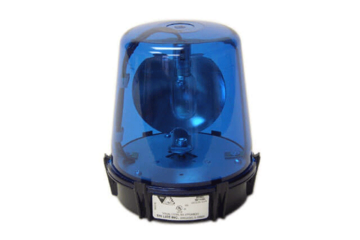

Rotating Reflector Beacon MVLP
Reg. Price:
$78.10
Sale Price:
$71.00
Save:
$7.10
back add to cart
Dome Color
*
Mounting Styles
*
Voltage
*
LED Bulb (Add-on)
120 V LED Bulb (Retrofit) (add $40)
12/24 V LED Bulb (Retrofit) (add $36)
Quantity
add to cart

Single Beam
Rotating Beacon
Up to 100 Flashes Per Minute

Details:

Home : Warning Lights

Product Cut Sheet

The MVLP is a compact, economical, rotating reflector beacon with direct drive for reliability and minimized maintenance. Excellent for indoor or outdoor industrial traffic control systems.

  • Industrial alerts
  • Machine status indicator
  • Weather alerts
  • UL Listed
  • LED option available
  • Non-corrosive plastic base
  • Made in the USA

Literature


Technical Specifications
Housing Non Corrosive ABS Plastic Base
Flashes Per Minute @12VDC 90-100
@110VAC 80-90
Electrical Rating MVLP-110P 120VAC 210mA
MVLP-12 12VDC 2.2A
Rating UL & cUL Listing on 120V Models
Dimensions 6 1/2" High x 5 5/8" Diameter
Weight 3 Lbs.
120VAC LED Bulb 40mA
12-24VDC LED Bulb 120mA @12VDC
120VAC Incandescent Bulb 25 Watts
12-48VDC Incandescent Bulb 25 watts

MVLP PARTS
Description Part # Old P/N Price
Amber Polycarb Dome 200503 MV-561-A $13.80
Blue Polycarb Dome 200506 MV-561-B $13.80
Clear Polycarb Dome 200509 MV-561-C $13.80
Green Polycarb Dome 200505 MV-561-G $13.80
Purple Acrylic Dome 203211 MV-561-P $13.80
Red Polycarb Dome 200502 MV-561-R $13.80
120V LED Bulb 426012 $40.00
12V-24V LED Bulb 426013 $36.00
12V Bulb 420336 1156 $2.15
120V Bulb 420705 25T8DC $6.00
Pulley - Small 203100 Pulley/Small $4.50
120V Motor 500505 Motor $38.00
12V Motor 553226 Motor $15.00
Belt - Large 800567 Belt/Large $2.00
Belt - Large 800587 Belt/Small $2.00
