Which style above (A, B, C or D) is the layout of your dock leveler?

Is the dock leveler used for below dock floor truck loading?  Yes or No

Using the diagram above please provide
1.  The width of the gap between the dock leveler platform and the floor at the right-front.
2.  The width of the gap between the dock leveler platform and the floor at the right-rear.
3.  The width of the gap between the dock leveler platform and the floor at the left-front.
4.  The width of the gap between the dock leveler platform and the floor at the left-rear.

5.  The width of the dock leveler platform.
6.  The length of the dock leveler platform.  (Including any gap between the freight door and the rear of the dock leveler platform.

Please note and describe any unusual characteristic of the doors or door frames which may effect installation of the Brush Seal System.

Dock Leveler Survey

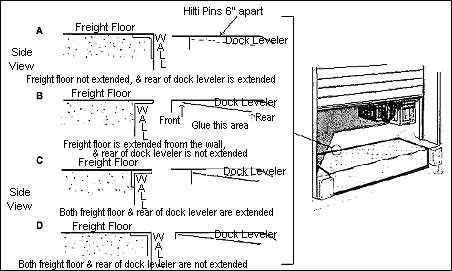

First, note which one of the drawings below describe the layout of your dock leveler.  A, B, C or D.  Measure the width of gap between the dock leveler at the back.
Ask the manager:  Is the dock leveler used for below dock floor truck loading?  Yes or No.

Seals for Dock Pit Levelers

Please take a couple of minutes to learn what information is needed and how to take the Dock Leveler survey.

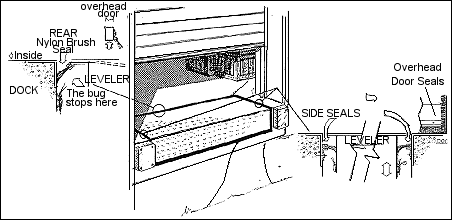

When you install a Loading Dock Supply brush seal kit on your dock leveler, a constant barrier is maintained over all exposed gaps, no matter how uneven the surfaces involved.  The rear gap (left), inside the door, is sealed at any level.  The side gaps in the outside the door (right) are similarly closed to entry by constant application of the nylon brush material.  The overhead door is sealed as shown.

Our type 6 nylon brush seals are recommended for food processing and handling facilities.  They are U.L. Rated as "Gasketing Material for Fire Doors" (viable from 100 degrees F to =350 degrees F).  This product is made in many sizes and shapes to secure nearly any building entry point and your energy savings alone will likely repay your investment in one season!
